Mile Marker Hydraulic Winches 麦尔·马克液压绞盘H12000系列

70-52000C 12,000 lbs. Hydraulic Winch
H12000(70-52000C)

75-52000C 12,000 lbs. Hydraulic Winch
HI12000(75-52000C)
Features Features
Freespooling.  Mechanical Lock. Sealed against the elements.  Can use underwater.  Corrosion resistant.  Stainless Steel Tie Bars and Fasteners.  Reversible mounting.  Can be mounted on 3 different sides.  Ductile iron strength. Freespooling.  Power IN/OUT.  Mechanical Lock.  Sealed against the elements.  Can use underwater.  Corrosion resistant.  Stainless Steel Tie Bars and Fasteners. Reversible Mounting.
Specifications Specifications
Part Number 70-52000C
Rated Line Pull 12,000 lbs.@1500 PSI
(single line) (5,454 kgs.)
Gear Train Planetary
Gear Ratio 6:1 (low gear)
1:1 (high gear)
Motor 18.7 C.I. Hydraulic
Cable 3/8" x 100' (14,400 nominal)
Drum Size Diameter 2.5" (6.4cm)
Drum Size  Length 9" (23cm)
Total Shipping Weight 98 lbs.
Bolt Pattern 10" x 4.5" (4 bolts, 3/8")
Part Number 75-52000C
Rated Line Pull 12,000 lbs.@1500 PSI
(single line) (5,454 kgs.)
Gear Train Planetary
Gear Ratio 6:1 (low gear)
1:1 (high gear)
Motor 18.7 C.I. Hydraulic
Directional Control 12V Solenoid 3 way
Valve Integrated (maximum rated flow 3.5 gpm) draws 2 amps
Control Switch Remote Switch, 12' lead
Hoses 2 hoses (5' and 7') Steel Braid High Pressure, 3,000 PSI rating.  Use size 6 JIC swivel female on both ends.
Cable 3/8" x 100' (14,400 nominal)
Drum Size Diameter 2.5" (6.4cm)
Drum Size  Length 9" (23cm)
Total Shipping Weight 110 lbs.
Performance Specifications Performance Specifications
3.5 GPM@1500 PSI 3.5 GPM@1500 PSI
Layer of Cable
1
2
3
4
Line Speed-Low Gear (FPM)
5.65
6.43
7.41
8.58
Rated Pull (lbs.)
12,000
9,400
8,200
7000
Line Speed-High Gear (FPM)
31
36
42
48
Rated Pull (lbs.)
2,000
1,550
1,350
1,150
Layer of Cable
1
2
3
4
Line Speed-Low Gear (FPM)
5.65
6.43
7.41
8.58
Rated Pull (lbs.)
12,000
9,400
8,200
7000
Line Speed-High Gear (FPM)
31
36
42
48
Rated Pull (lbs.)
2,000
1,550
1,350
1,150

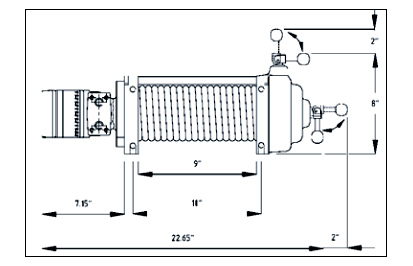

结构与尺寸示意图

Mile Marker液压绞盘中,磅数相同的H系列与HI系列性能参数完全一致,差别在于H系列只包括液压绞盘机身,而HI系列包括了相应的标准安装附件如油管、油管接头、控制阀等。
