Mile Marker Hydraulic Winches 麦尔·马克液压绞盘H9000系列

70-50050C 9,000 lbs Hydraulic Winche
H9000(70-50080C)

75-50050C 9,000 lbs Hydraulic Winche
HI9000(75-50085C)
Features   Features
Freespooling.  Mechanical Lock. Sealed against the elements.  Can use underwater.  Corrosion resistant,  Stainless Steel Tie Bars and Fasteners.  Reversible mounting.   Freespooling.  Power IN/OUT.  Mechanical Lock.  Sealed against the elements.  Can use underwater.  Corrosion resistant.  Stainless Steel Tie Bars and Fasteners. Reversible Mounting.
Specifications   Specifications
Part Number 70-50080C
Rated Line Pull 9,000 lbs.@1500 PSI
(single line) (4,090 kgs.)
Gear Train Planetary
Gear Ratio 6:1 (low gear)
  1:1 (high gear)
Motor 14 C.I. Hydraulic
Cable 3/8" x 100' (14,400 nominal)
Drum Size Diameter 2.5" (6.4cm)
Drum Size Length 9" (23cm)
Total Shipping Weight 93 lbs.
Bolt Pattern 10" x 4.5" (4 bolts, 3/8")

Part Number 75-50085C
Rated Line Pull 9,000 lbs.@1500 PSI
(single line) (4,090 kgs.)
Gear Train Planetary
Gear Ratio 6:1 (low gear)
  1:1 (high gear)
Motor 14 C.I. Hydraulic
Directional Control 12V Solenoid 3 way
Valve Integrated (maximum rated flow 3.5 gpm) draws 2 amps
Control Switch Remote Switch, 12' lead
Hoses 2 hoses (5' and 7') Steel Braid High Pressure, 3,000 PSI rating.  Use size 6 JIC swivel female on both ends.
Cable 3/8" x 100' (14,400 nominal)
Drum Size Diameter 2.5" (6.4cm)
Drum Size Length 9" (23cm)
Total Shipping Weight 103 lbs.

Performance Specifications   Performance Specifications
3.5 GPM@1500 PSI 3.5 GPM@1500 PSI
Layer of Cable
1
2
3
4
Line Speed-Low Gear (FPM)
6.16
7.48
8.8
10.5
Rated Pull (lbs.)
9,000
7,300
6,200
5,400
Line Speed-High Gear (FPM)
33.6
38.4
48
57
Rated Pull (lbs.)
1,500
1,200
1,000
900
Layer of Cable
1
2
3
4
Line Speed-Low Gear (FPM)
6.16
7.48
8.8
10.5
Rated Pull (lbs.)
9,000
7,300
6,200
5,400
Line Speed-High Gear (FPM)
33.6
38.4
48
57
Rated Pull (lbs.)
1,500
1,200
1,000
900

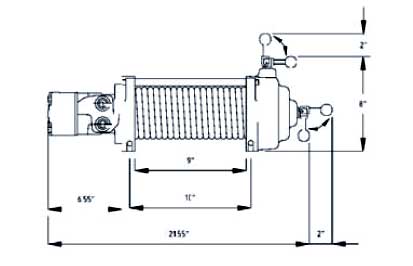

结构与尺寸示意图

Mile Marker液压绞盘中,磅数相同的H系列与HI系列性能参数完全一致,差别在于H系列只包括液压绞盘机身,而HI系列包括了相应的标准安装附件如油管、油管接头、控制阀等。
