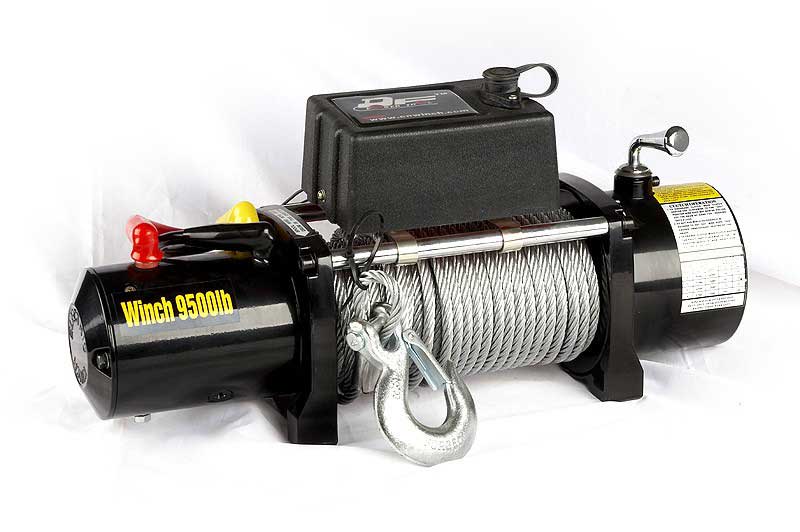

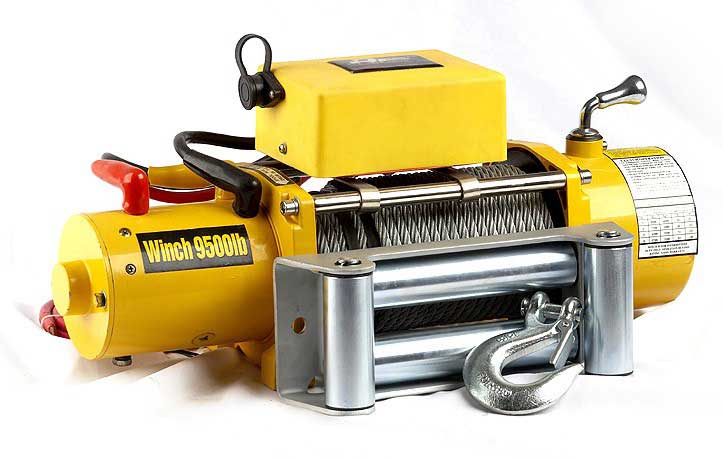

1720.00 不含税金及包装运费

|
Rated Line Pull |
9500LBS (4300kgs) single line |
Motor |
5.5hp/4.0kw Series Wound |
Control |
Remote switch, 12ft(3.7m)lead |
Gear train |
3 Stage Planetary |
Gear train ratio |
265:1 |
Clutch |
Sliding Ring Gear |
Braking Action |
Automatic In-The-Drum |
Drum Size |
Diameter2.5"(63.5mm) Length8.8"(224mm) |
Cable |
94ft of 5/16"diameter(28m of 8.3mm diameter) |
Fairlead Fairlead |
4-Way Roller Fairlead |
Remote Control |
Included |
Battery |
Recommended:650CCA minimum for winching |
Battery Leads |
2 gauge,72"(183mm) |
Finish |
Black powder coat |
Overall Dimensions |
21.1"×6.3"×8.6"(537mm×160mm×218mm) |
Mounting Bolt Pattern |
254mm×114.3mm |
Weight |
N.W.37kg G.W.39kg |
Packing Size |
57×19×34.5cm 1PC/CTN |

典型的中型越野车绞盘。
|
|

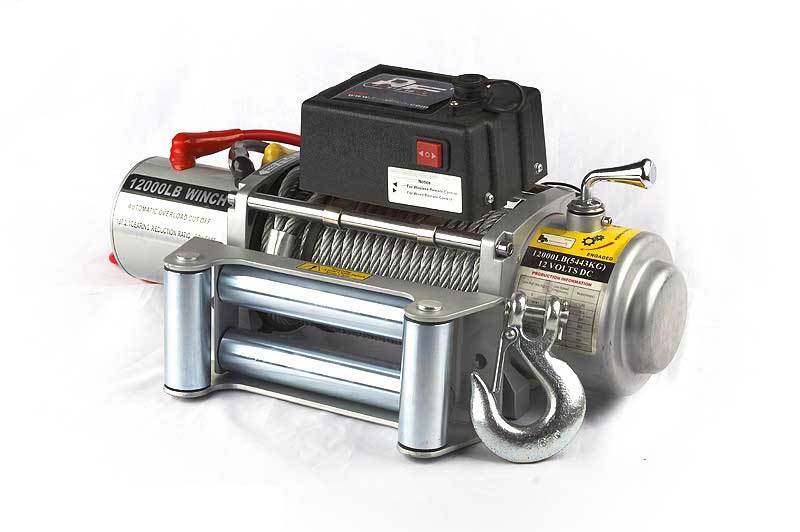

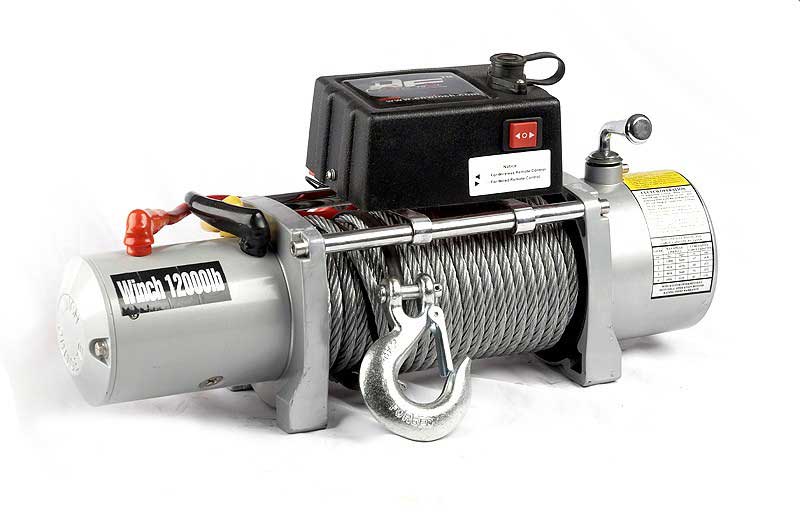

1820.00 不含税金及包装运费

|
Rated Line Pull |
12000LBS (5443kgs) single line |
Motor |
12V 5.5hp/4.0kw 24V 5.98hp/4.46kw Series Wound |
Control |
Remote switch, 12ft(3.7m)lead |
Gear train |
3 Stage Planetary |
Gear train ratio |
265:1 |
Clutch |
Sliding Ring Gear |
Braking Action |
Automatic In-The-Drum |
Drum Size |
Diameter 2.52"(64mm)Length 8.82"(224mm) |
Cable |
94ft of 3/8"dianeter (28m of 9.4mm diameter) |
Fairlead |
4-Way Roller Fairlead |
Remote Control |
Included |
Battery |
Recommended:650CCA minimum for winching |
Battery Leads |
2 gauge,72"(183mm) |
Finish |
Dark gray powder coat |
Overall Dimensions |
21.1"×6.3"×9.5"(537mm×160mm×280mm) |
Mounting Bolt Pattern |
254mm×114.3mm |
Weight |
N.W.37.5kg G.W.39.5kg |
Packing Size |
57×19×34.5cm 1PC/CTN |

适用于大中型越野车,或者作为工程及救援平台工具。
|
|

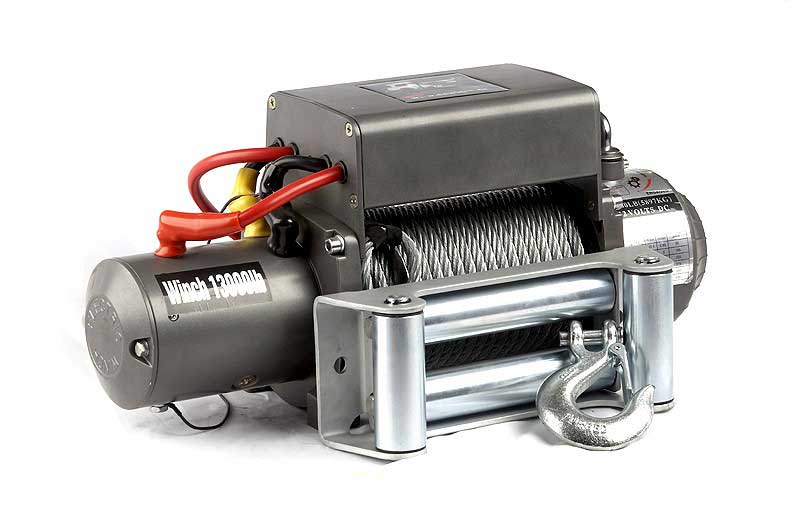

1880.00 不含税金及包装运费

|
Rated Line Pull |
13000LBS (5897kgs) single line |
Motor |
5.5hp/4.0kw 12V, 6.44hp/4.8kw 24V Series Wound |
Control |
Remote switch, 12ft(3.7m)lead |
Gear train |
3 Stage Planetary |
Gear train ratio |
218.4:1 |
Clutch |
Flexible operation,water-resistent |
Braking Action |
Automatic In-The-Drum |
Drum Size |
Φ64mm×L223mm |
Cable |
Φ9.5mm,26m |
Fairlead |
4-Way Roller Fairlead |
Remote Control |
Included |
Battery |
Recommended:650CCA minimum for winching |
Battery Leads |
2 gauge,72"(183mm) |
Finish |
Dark gray powder coat |
Overall Dimensions |
21.3"×6.3"×8.6"(540mm×160mm×218mm) |
Mounting Bolt Pattern |
254mm×114.3mm |
Weight |
N.W.39kg G.W.41kg |
Packing Size |
57×19×34.5cm 1PC/CTN |

拖车绞盘。
|
|

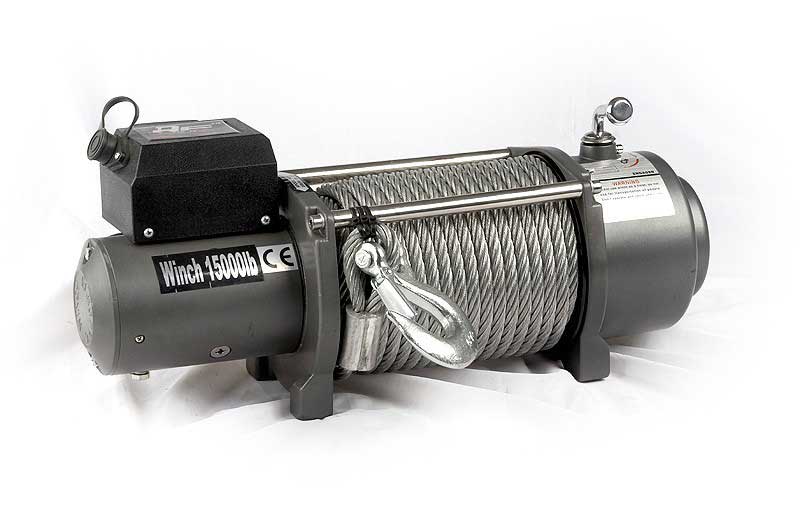

2480.00 不含税金及包装运费

|
Rated Line Pull |
15000LBS (6804kgs) single line |
Motor |
5.6hp/4.2kw 12V, 6.17hp/4.6kw 24V Series Wound |
Control |
Remote switch, 12ft(3.7m)lead |
Gear train |
3 Stage Planetary |
Gear train ratio |
312.4:1 |
Clutch |
Flexible operation,water-resistent |
Braking Action |
Automatic In-The-Drum |
Drum Size |
Φ85mm×L221.5mm(3.35"×8.72") |
Cable |
Φ11.0mm,28m (0.433"×91.86") |
Fairlead |
4-Way Roller Fairlead |
Remote Control |
Included |
Battery |
Recommended:650CCA minimum for winching |
Battery Leads |
2 gauge,72"(183mm) |
Finish |
Dark gray powder coat |
Overall Dimensions |
21.5"×7.09"×9.73"(547mm×180mm×247mm) |
Mounting Bolt Pattern |
254mm×114.3mm (10"×4.5") |
Weight |
N.W.53kg G.W.55kg |
Packing Size |
60×23×38.5cm 1PC/CTN |

拖车绞盘。
|
