3 Things To Know Before You Buy |
1. Superwinch models for your ATV:
|
Vehicle Size |
|
Minimum
Winch Required |
|
|
|
|
|
|
|
|
|
Small |
Less than 350cc |
T1500 or T2000 |
|
Medium |
350cc – 500cc |
ATV2500 |
|
Large |
Greater than 500cc |
ATV3000 |
|
UTV or
Side-by-Side UTV |
|
UTV4000 |
2. Laws of Physics govern the performance of a winch. Law #1: too many layers of rope on the drum will rob your winch of power and efficiency and keep you from working in the Pulling Power Zone™.
3. Physics Law #2: double the line with a Pulley Block and double the pulling power of your winch. Removing extra rope from the drum to use with a pulley block not only doubles winch power, it allows you to work in the Pulling Power Zone™!
Fig 1. A single-line, straight pull postioned to keep the rope spooling straight through the roller fairlead.

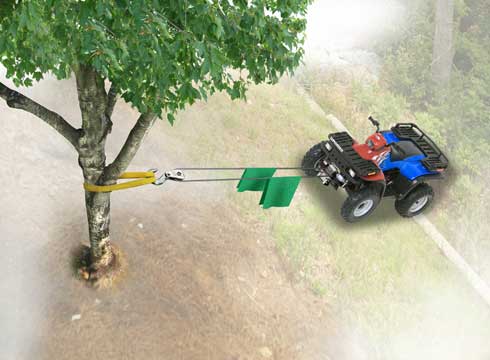

Fig 2. A double-line, straight pull with a typical winch and pulley arrangement. Adding a pulley block to your winch doubles its capabilities.
Fig 3. A single-line, redirected pull. When you don't have a straight clean line to the anchor point, use a pulley block.
|
