推荐阅读国产绞盘普及行动：为国产绞盘正身国产绞盘普及行动：三大利好保护客户利益品质保障：国产绞盘普及行动中的所有产品均通过中国汽车绞盘网定样测试。

PN：Xdx9.0

1980.00不含税金及包装运费

Rated Line Pull	9000lbs (4082kgs) Single-line
Motor	6.0hp, 12V (24V) Series-Wound
Carbon Brush Ass’y	Permanent Pressure Carbon Brush Structure (PPCB)
Control	Intelligent Handheld Controller, 12′(3.7m) lead
Wireless Control	Not Included; Optional
Gear Train and Reduction Ratio	3 stage planetary,246.8:1
Clutch	Sliding ring gear, 100% engagement one time
Torque Limiter	Included, Adjustable Torque Limiter (ATL)
Braking	Automatic; BE Braker in motor
Drum Size	Diameter 2.5″(63.5mm); Length 8.82″(224mm)
Wire Rope	Diameter 21/64″(8.2mm); Length 94′(28.5m)
Fairlead	Compressed 4-way roller fairlead
Recommended Battery	650CCA minimum for winching
Battery Leads	25mm2;Length 72″(1.83m)
Control Box	ISM Box
Finish	Dark Grey
Weight	84lbs(38kgs)
Overall Dimensions	(LxWxH)22.8″ x 6.4 ″x 8.5″ (580mmx162mmx216mm)
Mounting Bolt Pattern	254mm x 114.3mm

多用途绞盘越野车绞盘

适用于各型越野车。

PN：Xdx10.0

2180.00不含税金及包装运费

Rated Line Pull	10000lbs (4535kgs) Single-line
Motor	6.0hp, 12V (24V) Series-Wound
Carbon Brush Ass’y	Permanent Pressure Carbon Brush Structure (PPCB)
Control	Intelligent Handheld Controller, 12′(3.7m) lead
Wireless Control	Not Included; Optional
Gear Train and Reduction Ratio	3 stage planetary, 246.8:1
Clutch	Sliding ring gear, 100% engagement one time
Torque Limiter	Included, Adjustable Torque Limiter (ATL)
Braking	Automatic; BE Braker in motor
Drum Size	Diameter 2.5″(63.5mm); Length 8.82″(224mm)
Wire Rope	Diameter 23/64″(9.2mm); Length 94′(28.5m)
Fairlead	Compressed 4-way roller fairlead
Recommended Battery	650CCA minimum for winching
Battery Leads	25mm2;Length 72″(1.83m)
Control Box	ISM Box
Finish	Dark Grey
Weight	84lbs(38kgs)
Overall Dimensions	(LxWxH)22.8″ x 6.4 ″x 8.5″ (580mmx162mmx216mm)
Mounting Bolt Pattern	254mm x 114.3mm

多用途绞盘越野车绞盘

适用于各型越野车。

PN：Xdx12.0

2380.00不含税金及包装运费

Rated Line Pull	12000lbs (5442kgs) Single-line
Motor	6.0hp, 12V (24V) Series-Wound
Carbon Brush Ass’y	Permanent Pressure Carbon Brush Structure (PPCB)
Control	Intelligent Handheld Controller, 12′(3.7m) lead
Wireless Control	Not Included; Optional
Gear Train and Reduction Ratio	3 stage planetary, 246.8:1
Clutch	Sliding ring gear, 100% engagement one time
Torque Limiter	Included, Adjustable Torque Limiter (ATL)
Braking	Automatic; BE Braker in motor
Drum Size	Diameter 2.5″(63.5mm); Length 8.82″(224mm)
Wire Rope	Diameter 3/8″(9.2mm); Length 94′(28.5m)
Fairlead	Compressed 4-way roller fairlead
Recommended Battery	650CCA minimum for winching
Battery Leads	25mm2;Length 72″(1.83m)
Control Box	ISM Box
Finish	Dark Grey
Weight	84lbs(38kgs)
Overall Dimensions	(LxWxH)22.8″ x 6.4 ″x 8.5″ (580mmx162mmx216mm)
Mounting Bolt Pattern	254mm x 114.3mm

工具类绞盘越野车绞盘

适用于各型越野车。

PN：RVEWX9500

2650.00不含税金及包装运费

拖车绞盘越野车绞盘

适用于大中型越野车，或者作为工程及救援平台工具。

PN：RVEWX12000

2950.00不含税金及包装运费

拖车绞盘越野车绞盘

典型的中型越野车绞盘。

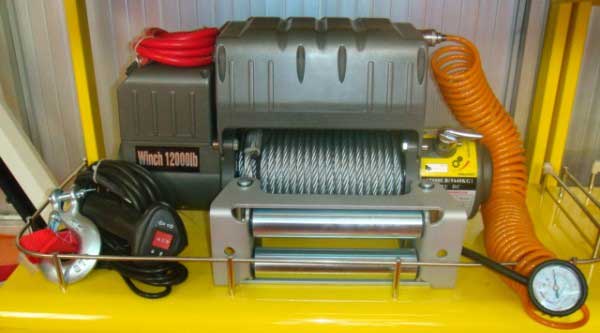

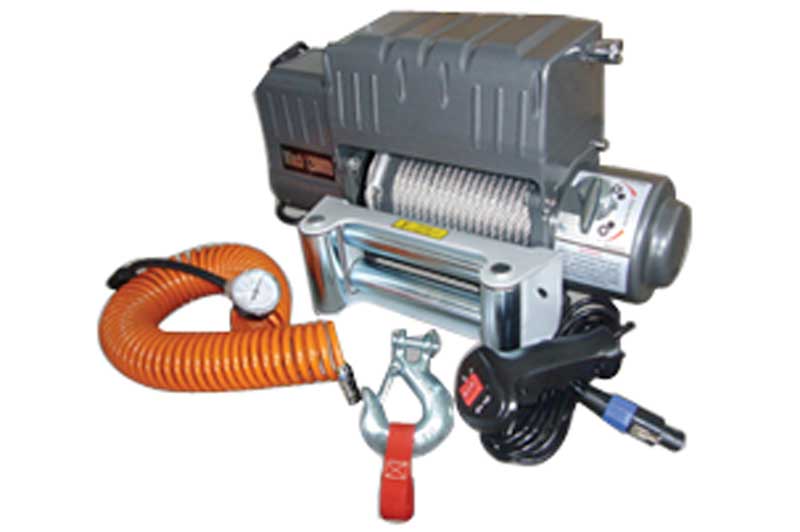

PN：DFSQ12000

2480.00不含税金及包装运费

Rated Line Pull	12000LBS(5440kgs) single line
Motor	6.6hp/4.8kw 12V, 4.0hp/3.0kw 24V, Series Wound
Control	Remote switch, 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear train ratio	187.2:1
Clutch	Flexible operation,water-resistent
Braking Action	Automatic In-The-Drum
Drum Size	Φ85mm×L221.5mm(3.35"×8.72")
Cable	94ft of 3/8"diamdeter(28m of 9.1mm diameter)
Main body	sealed
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge,72"(183mm)
Finish	Dark gray powder coat
Overall Dimensions	21.1"x6.3"x8.6" (537mmx160mmx218mm)
Mounting Bolt Pattern	254mm×114.3mm
Weight	N.W. 40kgs G.W. 43Kgs
Packing Size	57x19x34.5cm 1PC/CTN

拖车绞盘越野车绞盘

集成气泵的一体化电动绞盘，适用于越野及工程/救援车改装。

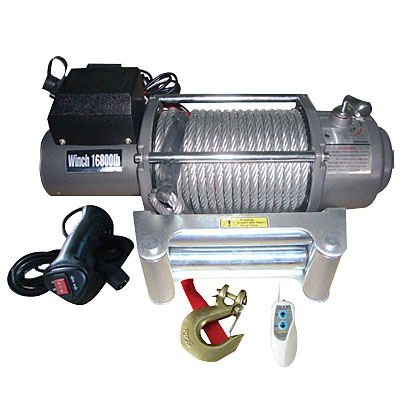

PN：DFSEC16800

2880.00不含税金及包装运费

Rated Line Pull	16800LBS (7620kg) single line
Motor	5.6hp/4.2kw,12V, 6.17hp/4.6kw,24V, Series Wound
Control	Remote switch, 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear train ratio	312.4:1
Clutch	Flexible operation,water-resistent
Braking Action	Automatic In-The-Drum
Drum Size	Φ85mm×L221.5mm(3.35"×8.72")
Cable	Φ11.5mm,28m
Fairlead	4-Way Roller Fairlead
Remote Control	Included
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge,72"(183mm)
Finish	Dark gray powder coat
Overall Dimensions	21.5"×7.09"×9.73"(547mm×180mm×247mm)
Mounting Bolt Pattern	254mm×114.3mm
Weight	N.W.54kg;G.W.56kg
Packing Size	60×23×38.5cm 1PC/CTN

拖车绞盘

拖车绞盘。
