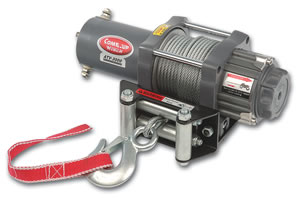

| | | | | | | | > ATV/UTV Winch> ATV Winch >ATV-3000 |  | | | ATV Winch ATV-3000 | | |  | | | | | | STANDARD FEATURES
● Winch drum centered to avoid tire interference and providestreamlined appearance
● High torque permanent magnet motor delivers high torque and power at lower amp. draw
● Full metal 3 stage planetary gear train
● Cam activated freespool for fast wire rope payout
● Weather resistant, sealed solenoid
● Automatic load-holding mechanical brake for strenghth and reliability
● Roller fairlead and snatch block supplied | | | | | | SPECIFICATION
| | Line Pull : 1,363 kg/ 3,000 lb | | | Motor: 800 w / 1.0 hp | | | Gear Train : 3stage planetary gears | | | GearRatio : 145:1
Brake :Dynamic and Mechanical
Freespool: Cam activated | | | Wire Rope Size: 4.8 mm × 15.2 m (3/16" × 50')
Wire Rope Type : Galvanized aircraft | | | Control:Remote control and handlebar trigger switch | | | Mounting Bolt Pattern: 76 x 124 mm ( 3" x 4.9" ) | | | *Limited lifetime warranty |
| | |
| | |
LINEPULL AND ROPE CAPACITY| Layer of Wire Rope | Line Pull
kg / lb | Total Rope on the Drum
m / ft | | 1st | 1,363 / 3,000 | 2.6 / 8.5 | | 2nd | 1,170 / 2,590 | 5.7 / 18.7 | | 3rd | 1,030 / 2,270 | 9.2 / 30.2 | | 4th | 920 / 2,030 | 13.1 / 43 | | 5th | 830 / 1,830 | 15.2 / 50 |
LINE SPEEDAND AMP. DRAW ( 1st layer of rope on the drum)Line Pull
kg / lb | Line Speed
mpm / fpm | Amp. Draw
A | | No Load | 7.6 / 24.9 | 15 | | 230 / 500 | 6.3 / 20.7 | 40 | | 450 / 1,000 | 4.9 / 16.1 | 70 | | 680 / 1,500 | 4.3 / 14.1 | 100 | | 900 / 2,000 | 3.7 / 12.1 | 140 | | 1,140 / 2,500 | 3.1 / 10.2 | 180 | | 1,363 / 3,000 | 2.5 / 8.2 | 230 |
| |
WARNING
Winches are not to be used for the lifting or moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
| | |

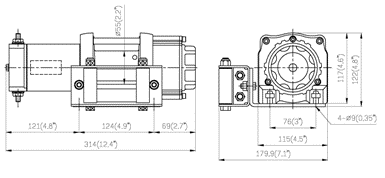

DIMENSIONS(mm/in) | | | | | |  | | | | | | STANDARDACCESSORIES
● Winch Ass'y with Wire Rope
● Remote Control (WA-0314)
● Remote Scoket
● Solenoid (CES-2012)
● Battery Lead
● Roller Fairlead (WA-0511)
● Base Plate
● Snatch Block (CBT-06)
● Mounting Hardware
● Handlebar Trigger Switch (WA-0316)
● Handlebar Hardware
PACKAGE
● Winch weight : 7.1 kg / 15.7 lb (withwire rope)
● Gross Weight : 12.7 kg / 28.0 lb
● Box Dimension :340 × 285 × 140 mm (13.4" × 11.2 " ×5.5") | | | | | | |
| |
| |
