| Part Number: PN 67600 (12V DC) |
| Rated Line Pull: 9500 lbs. (4310 kgs.) single-line |
| Motor: Gen II, Series Wound TM |
| Remote Control: 9.5si remote switch 12' (3.7) lead |
| Controller Capabilities: M.O.S.F.E.T. technology with diagnostic capabilities |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 156:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |

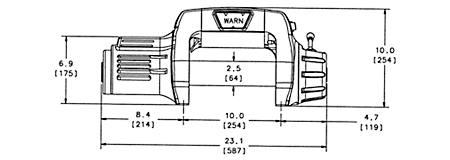

| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 89lbs. (36.3kgs.) |
| Wire Rope: 125', 5/16" diameter (30m, 8mm diam.) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Chromate with high-gloss powder coat |
| Nuts/Bolts: PN 39570 |
| CE Winches: CE products are designed to meet European Standards. CE winches include CE labels and Manuals. |
