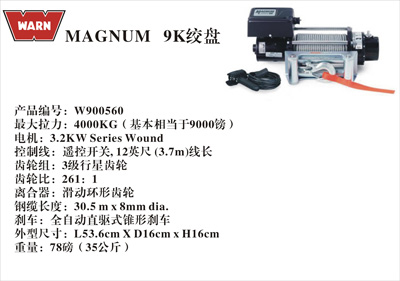

MAGNUM 9K SELF-RECOVERY WINCH(TABOR 9K)

编号：PN 28500（12V 直流电），PN 285002（12V 直流电），PN 265012（24V 直流电，CE）
缆绳拉力：9000磅. (4080 公斤.) 单线
电机：12V 4.6马力，24V 2.5马力 Series WoundTM
控制线：遥控开关, 12英尺 (3.7m)线长
齿轮组：3级行星齿轮
齿轮比：156：1
润滑油：#17 壳牌航空油
离合器：滑动环形齿轮
刹车：全自动直驱式锥形刹车
缆线鼓直径/长度：2.5英寸/9.0英寸 (6.4cm/23cm)
重量：78磅（35公斤）
钢缆尺寸：100英尺, 5/16" 直径(30m, 8mm 直径.)
导缆器：滚筒式
推荐使用电瓶：至少为650CCA级
电瓶接线：2根标准电瓶线，72英寸（1.83m）
涂料：银色粉末涂层
CE产品的设计满足欧洲标准。CE绞盘包括CE认证标志、操作手册、滚轮式导缆器、安全收放钩和防磨套管。

Warn Tabor 9K Winch

A tough winch, at a great value. Comes with an automatic brake, 100 ft of wire rope, low-profile freespool actuator and a 3-stage planetary geartrain. It's a whole lot, for a whole little. Fits mid-frame mounting systems.

The Tabor 9K winch includes a hand-held remote control with 12' lead, wire rope with hook, hook strap and roller fairlead.

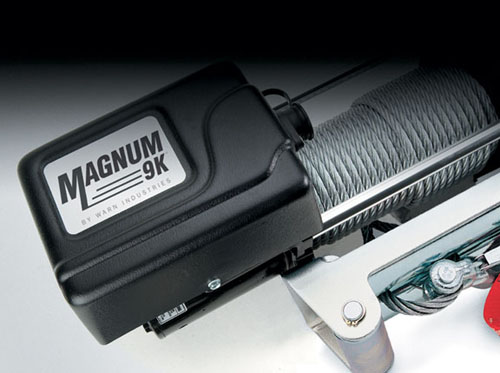

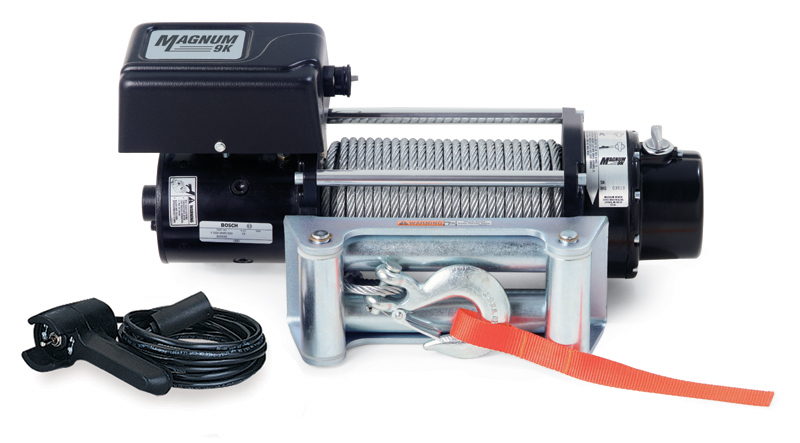

The New Magnum 9000lb winch, manufactured by one of the leaders in the winch industry, is a great entry level winch with 4.3 hp series wound motor includes 100’ of 5/16" wire rope, hook, Roller Fairlead, 12'Lead Remote Control Switch, 72" Battery Leads and Mounting Bolts. Compares to the WARN XD9000 and the Ramsey REP 9000 for a lot less money. The Magnum line is compatible with all of the Warn Mounting Systems and Hardware. Mounting kits sold separately. Shipped at $39.95 with UPS Ground. Standard shipping charges do not apply.

Above performance specs are based on first layer of drum

对比：XD9000参数
